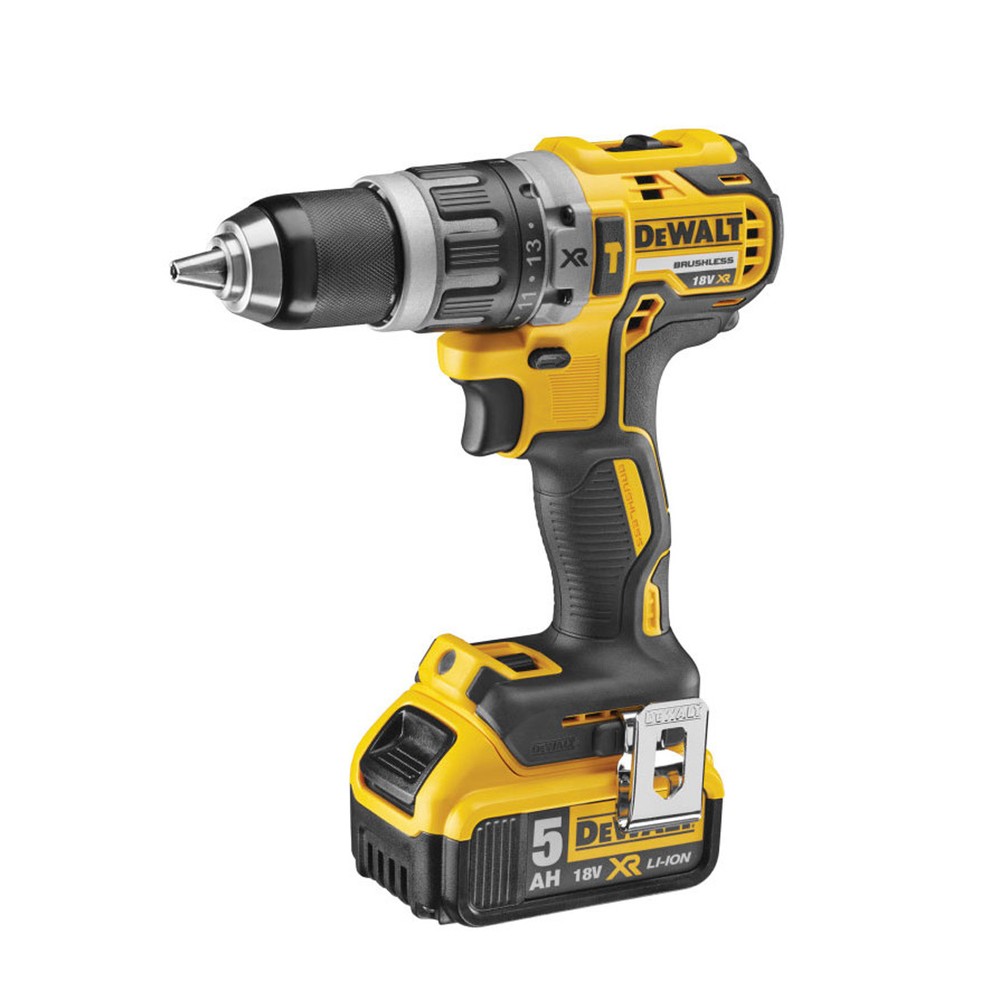

DeWalt DCD796PM 18v XR Brushless Combi Drill Inc 1x 4.0Ah & 1x 5.0Ah Battery

DeWalt DCD796PM-GB 18v XR Brushless Combi Drill Inc 1x 4.0Ah & 1x 5.0Ah Batteries, Multi Voltage Charger and TSTAK Carry Case

The new DeWalt DCD796PM compact combi hammer drill featuring brushless technology is up to 30% more powerful than the DCD795 with 460 Units Watts Out (UWO). Supplied in a TSTAK carry case with inlay for drill, 1x 4.0Ah and 1x 5.0Ah batteries and multi-voltage charger.

FEATURES

\n
• Brushless Motor Technology for excellent efficiency
\n
• Ultra compact, lightweight design allows use in confined spaces
\n
• Two speed all metal transmission for increased runtime and longer tool life
\n
• Drill Driver and Hammer feature for multiple applications
\n
• 15 position adjustable torque control for consistent screw driving into a variety of materials
\n
• Intelligent trigger design allows for total control of application
\n
• Improved ergonomic design with rubber grip over mould improving users comfort
\n
• Improved air flow to the motor for cooler electronics and increased power
\n

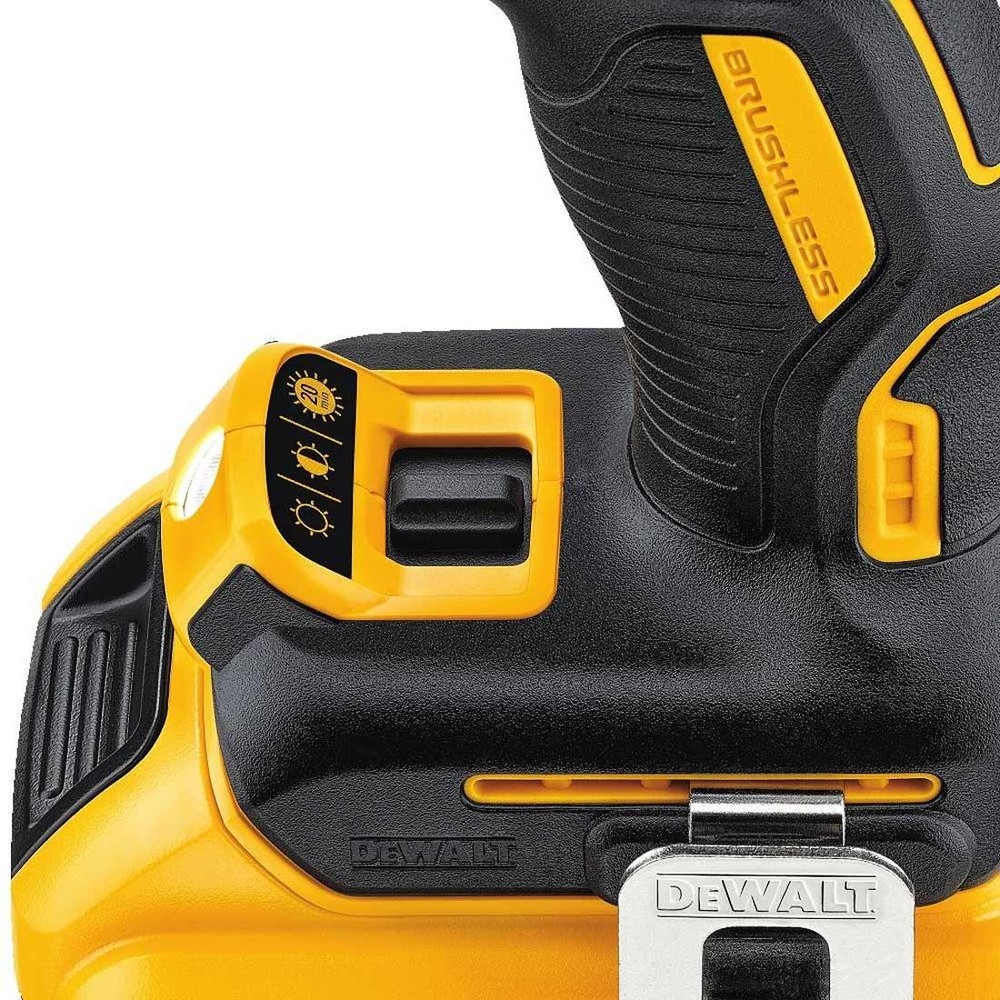

• 3 position super bright LED light
\n
• Li-Ion battery packs allows for superior insertion and removal with state of charge indicator
\n
• Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster
\n

SPECIFICATION

\n
• Voltage: 18v
\n
• Power Output (W): 460
\n
• Soft Application Max Torque (Nm): 27
\n
• Hard Application Max Torque (Nm): 70
\n
• Torque Settings: 15 + Drill
\n
• Brake Type: Electric
\n
• No. of Gears: 2
\n
• LED Job Light: Yes / Delay / Base-mounted
\n
• Battery Capacity Indicator: No
\n
• Battery Compatibility: 18v Lithium-Ion (XR)
\n
• Rotation: Forward / Reverse
\n
• Variable Speed Control Trigger: Yes
\n
• No Load Speed (RPM) High: 0-2000
\n
• No Load Speed (RPM) Med: N/A
\n
• No Load Speed (RPM) Low: 0-550
\n
• Chuck Type: 3-Jaw / Single Sleeve Keyless / All Metal
\n
• Chuck Capacity (mm): 1.5-13.0
\n
• Drill Capacity: Concrete (mm): 13
\n
• Drill Capacity: Metal (mm): 13
\n
• Drill Capacity: Wood (mm): 40
\n
• Impact Rate (BPM) High: 0-34000
\n
• Impact Rate (BPM) Med: N/A
\n
• Impact Rate (BPM) Low: 0-9350
\n
• Overall Length (mm): 190
\n
• Net Weight (Approx. Kg) with 1.5/2Ah Batt: 1.6
\n
• Net Weight (Approx. Kg) with 3/4/5Ah Batt: 1.8
\n
• Brushless Motor: Yes
\n

NOISE & VIBRATION

\n
• Sound Pressure Level (LpA): 89 dB (A)
\n
• Sound Power Level (LWA): 100 dB (A)
\n
• Sound Uncertainty (K): 3 dB (A)
\n
• Drilling Concrete Vibration Emission (ah): 11.5 m/s²
\n
• Drilling Concrete Vibration Uncertainty (K): 1.6 m/s²
\n
• Drilling Metal Vibration Emission (ah): <2.5 m/s²
\n
• Drilling Metal Vibration Uncertainty (K): 1.5 m/s²
