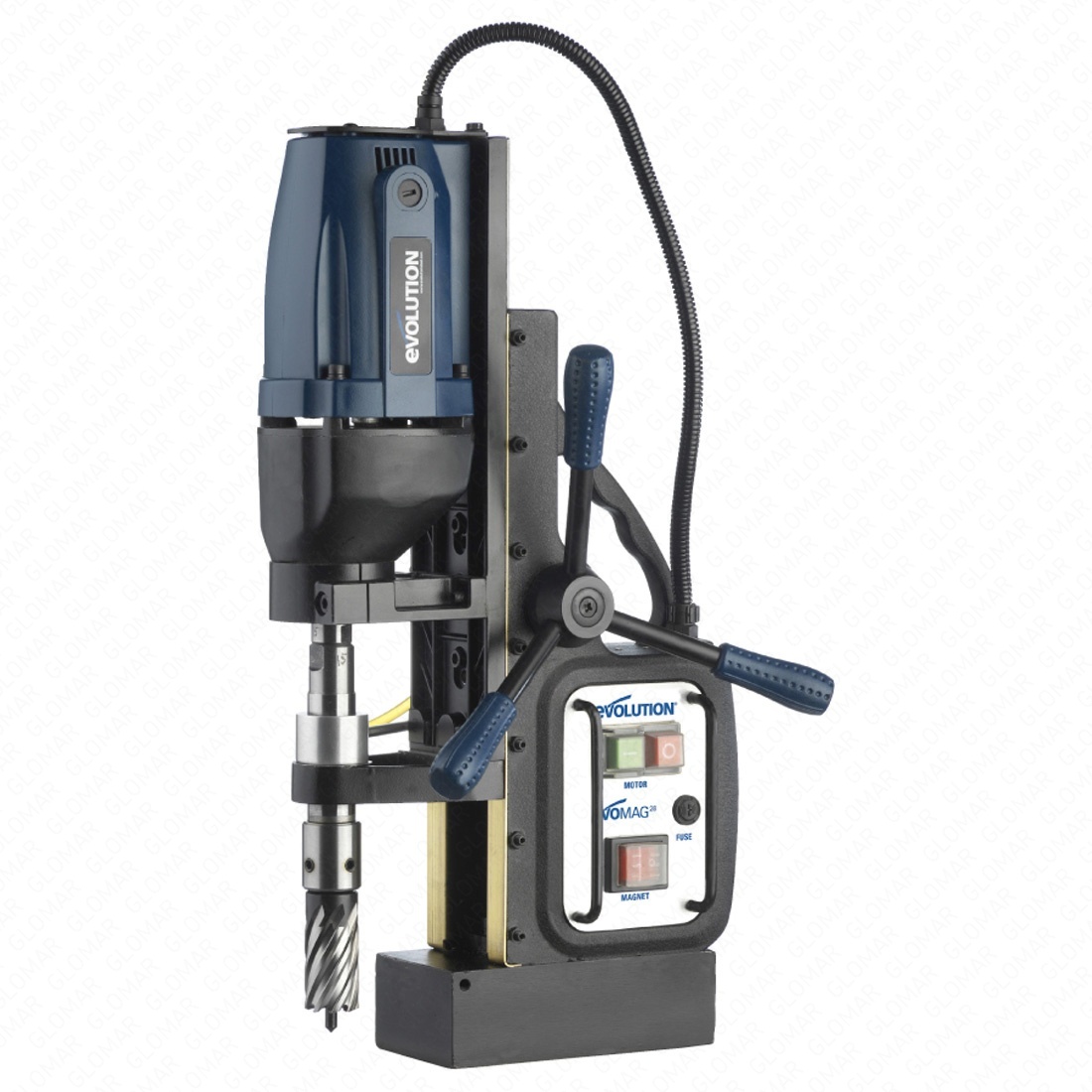

Evolution MAG42 42mm Industrial Magnetic Drill 230v 095-0001

Evolution MAG42 42mm Industrial Magnetic Drill 230v 095-0001

This incredible Magnetic Drill is deceptive in its capabilities; although small in size it is well-suited for heavy-duty industrial and fabrication work. The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion. Ideal for site use! With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use. It is also easy to carry (with the supplied case) and its light weight makes it manageable to position in both awkward and confined spaces.

The impressive EVOMAG42 offers incredible value with the capability to use up to 1-5/8 inch (42mm) cutters and 1/2 inch (13mm) twist drills. The EVOMAG42 also features an integrated coolant system for magnetic drilling.

FEATURES

\n
• Versatile, accurate and portable with strong magnetic adhesion
\n
• Lightweight makes it manageable to position in both awkward and confined spaces
\n
• Integrated coolant system for magnetic drilling
\n

SPECIFICATION

\n
• Motor (110V 50Hz): 1200W
\n
• Motor (240V 50Hz): 1200W
\n
• Speed No Load: 450 rpm-1
\n
• Number Of Speeds: 1
\n
• Insulation Class: 1
\n
• Cable Length: 2.6m
\n
• Maximum Annular Cutting Capacity: 42mm
\n
• Maximum Cutting Depth: 50mm
\n
• Cutter Shank: 19mm
\n
• Standard Twist Drill Capacity: 13mm
\n
• Magnetic Adhesion: 1300kg f
\n
• Minimum Plate Thickness: 10mm
\n
• Magnet Dimension: 40mm x 90mm x 180mm
\n
• Maximum Machine Height: 654mm
\n
• Minimum Machine Height: 420mm
\n
• Machine Width: 222mm
\n

SOUND & VIBRATION

\n
• Sound Pressure Level LPA: 89.40dB(A) K:3dB(A)
\n
• Sound Power Level LWA: 102.4dB(A) K=3 dB(A)
\n
• Hand Arm Vibration: 0.629m/s2 K= 1.5m/s2
\n
